Updated 4/16/06
Our Home Network
Network shelf
Patch panels

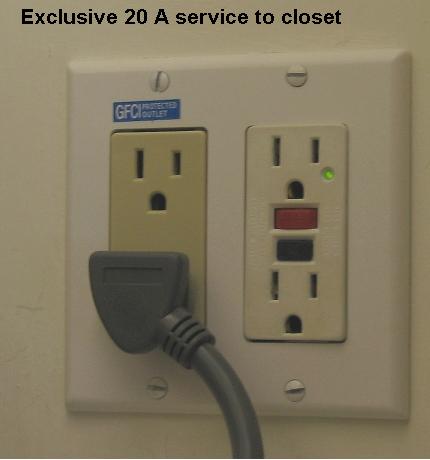

Its own power circuit

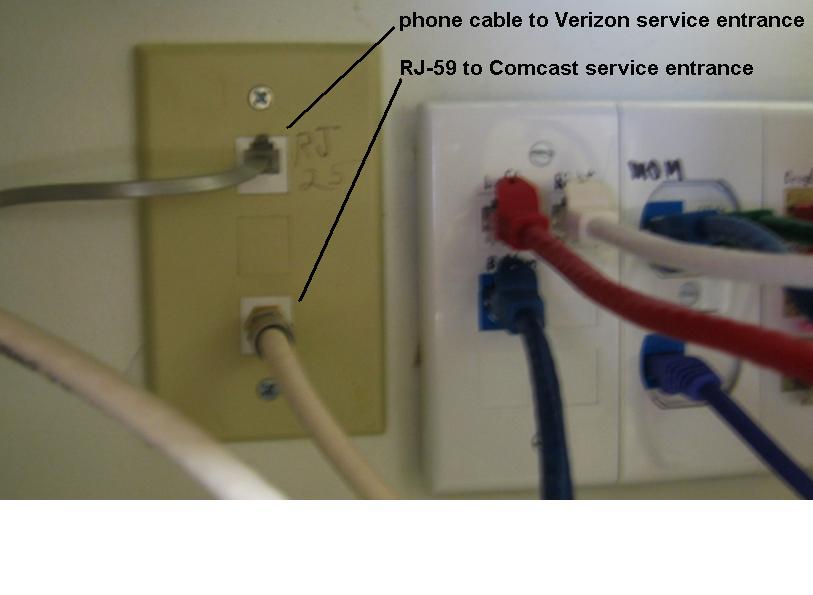

Connection to outside world
Hinge switch

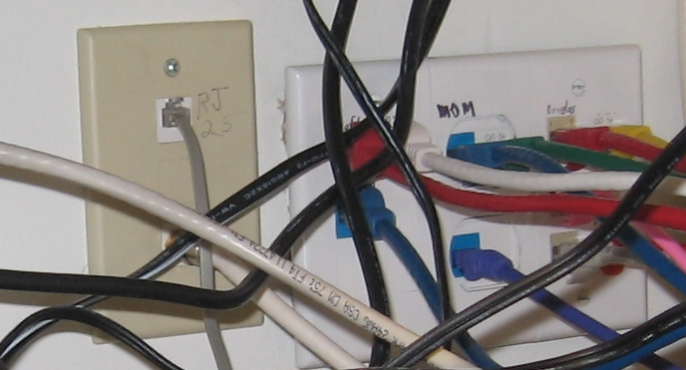

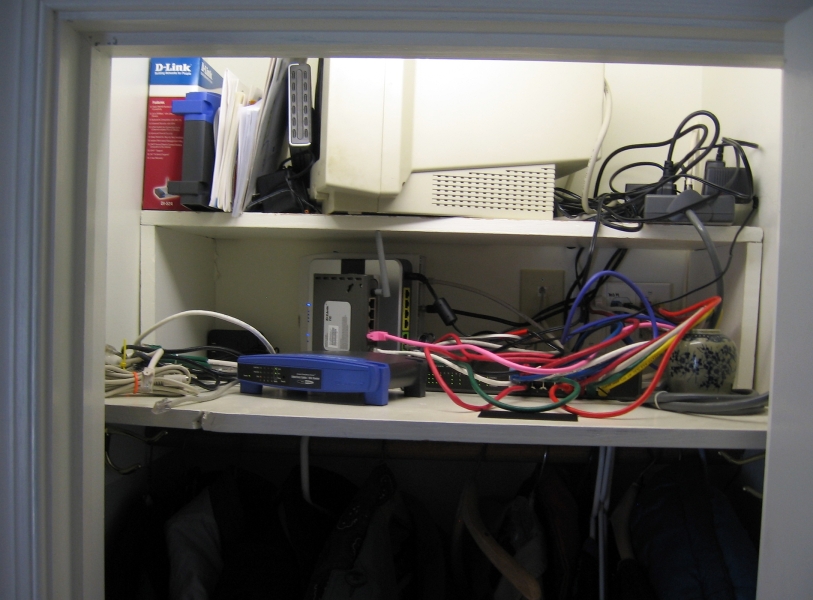

This network closet was created in the top of the front hall, coat closet. The patch pannel has space for 16
circuits of which 11 positions are currently in use. A Motorola Surfboard cable modem is the connection to

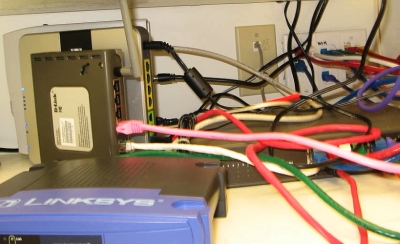

A Linksys VOIP router provides the office phone connection and a D-Link wireless router  supports  a WEP

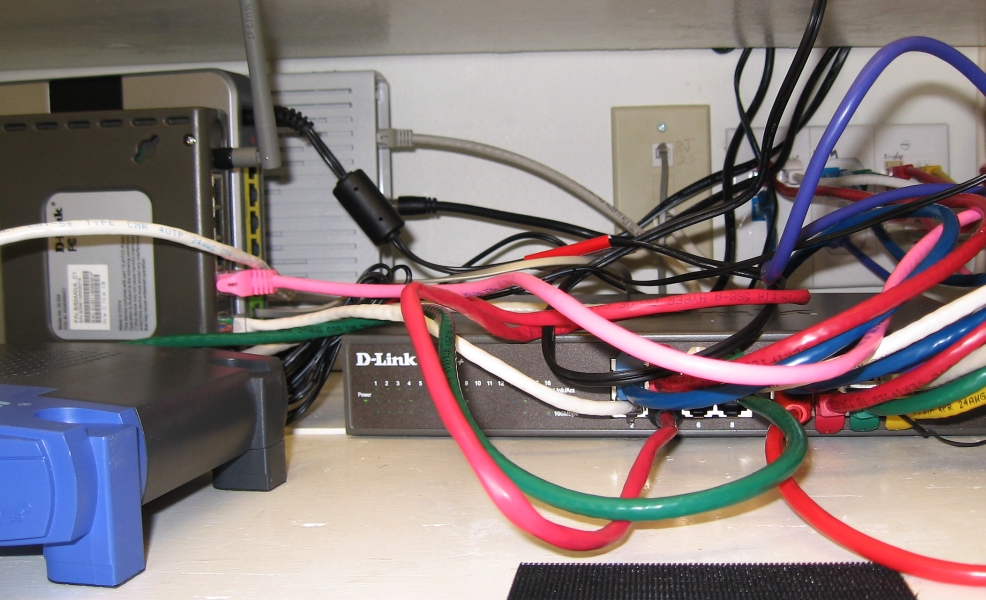

encrypted wireless network. A D-Link DSS-16+ was a recent $47 acquisition to support the wired network.

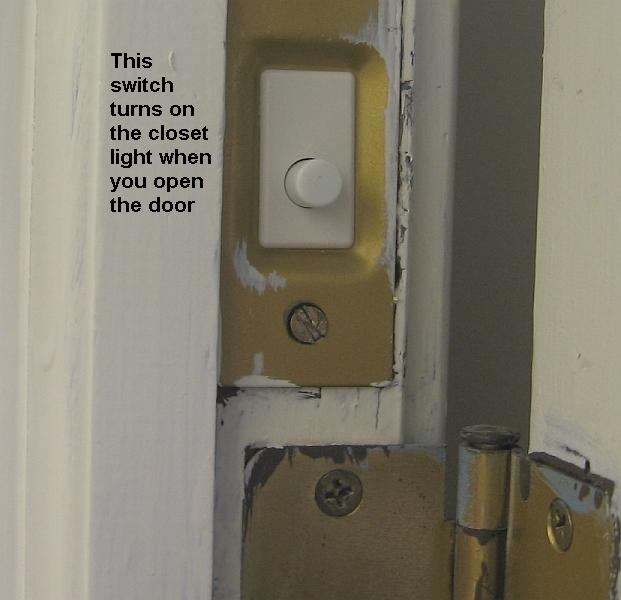

The closet has its own power circuit that is not shared by any other room. The switch in the door frame turns
the light on when you open the door.
